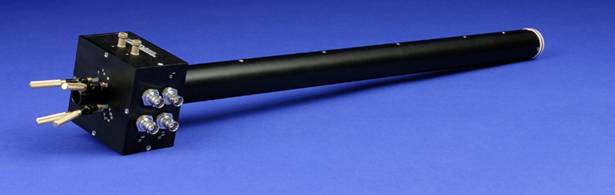

Protasis MRM extends its family of MicroFlow NMR to the exciting world of proteomics with the new Triple Inverse z-Gradient probe.  Like the popular proton-only and indirect carbon gradient probes before it, the TXI probe’s capillary flowcell significantly enhances NMR mass sensitivity to enable 1D,  2D and 3D homo- and heteronuclear NMR spectra from as little as 50 micrograms of target protein.  Flowcells only 5uL in volume allow spectral acquisition up to 100x faster than conventional probes enabling rapid 2D and 3D experiments.

Protein sample utilization is drastically reduced over conventional scale systems. The TXI probe is proving itself to be particularly effective in providing structural information on low expressing proteins and therefore,  opens a new route for structural proteomic studies. This permits significant savings in work-up time, expensive reagents (labeled media for the production of labeled protein) and makes high throughput automated micro-expression and purification systems practical.

All wetted surfaces of the TXI probe are rugged, yet smooth, fused silica that is compatible with
established electrophoresis wall coatings to minimize protein sticking problems.  Protasis/MRM probes
are easy to use, reliable to operate and adaptable to all major spectrometer systems.  Load manually
or with Protasis Life Science Automation solutions.

CNMR-__XXX-00            Protasis MRM Triple Inverse Gradient (TXI) NMR Probe

B = Bruker              XXX  =  300, 400, 500, 600 MHz field strengths

V = Varian

J = JEOL                 - 21  =  TXI probe, 75 micron I.D. plumbing
